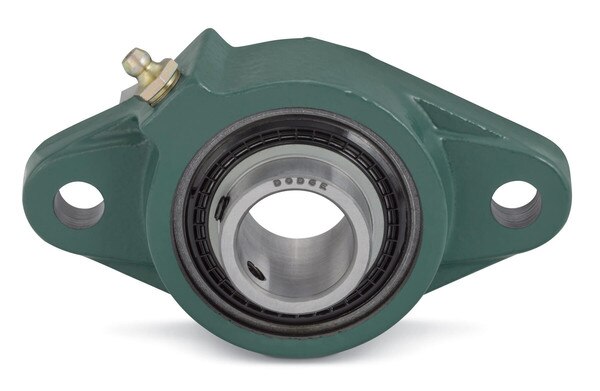

Dodge F2B-SC-106
Details
Housing Type: Two-Bolt Flange
Housing Material: Cast Iron
Shaft Attachment: Setscrew
Shaft Diameter: 1.3750 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 207 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height:
Bolt to Bolt (Max): 5.1200 in
Bolt to Bolt (Min): 5.1200 in
Bore Length: 1.7100 in
Maximum Speed: 3500 RPM
Static Load Capacity: 3461 lbf
Housing Material: Cast Iron
Shaft Attachment: Setscrew
Shaft Diameter: 1.3750 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 207 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height:
Bolt to Bolt (Max): 5.1200 in
Bolt to Bolt (Min): 5.1200 in
Bore Length: 1.7100 in
Maximum Speed: 3500 RPM
Static Load Capacity: 3461 lbf
