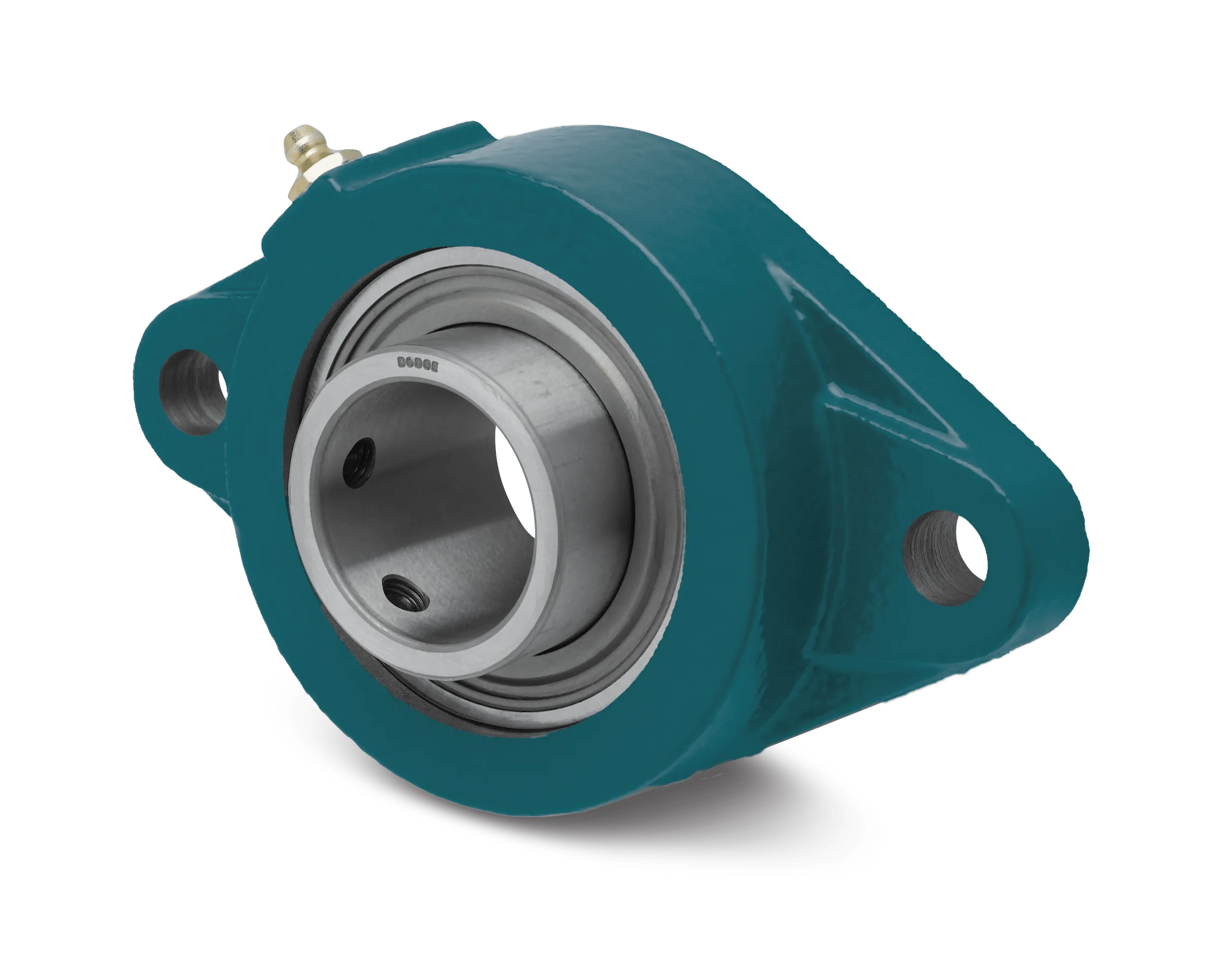

F2B-VSC-100
Details
Housing Type: Two-Bolt Flange
Housing Material: Cast Iron
Shaft Attachment: Setscrew
Shaft Diameter: 1.0000 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 205 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height:
Bolt to Bolt (Max): 3.8900 in
Bolt to Bolt (Min): 3.8900 in
Bore Length: 1.3400 in
Maximum Speed: 4500 RPM
Static Load Capacity: 1769 lbf
