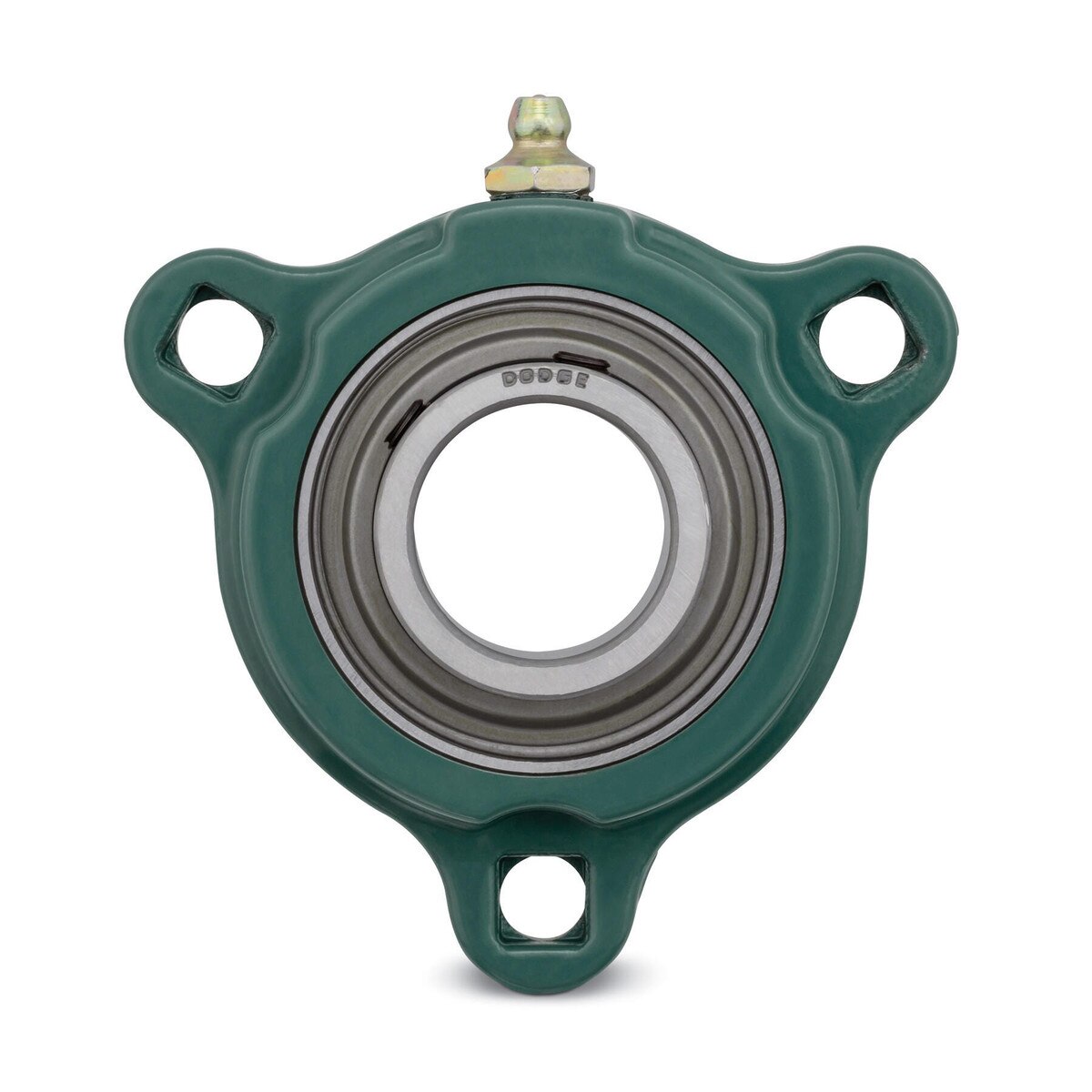

LF-SC-102

Housing Type: Three-Bolt Flange (Light Duty)
Housing Material: Alloy
Shaft Attachment: Setscrew
Shaft Diameter: 1.1250 in
Expansion Capability: Non-Expansion (Fixed)

Ball Bearing Series: 206 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height:
Bolt to Bolt (Max): 3.5600 in
Bolt to Bolt (Min): 3.5600 in
Bore Length: 1.2600 in
Maximum Speed:
Static Load Capacity:
