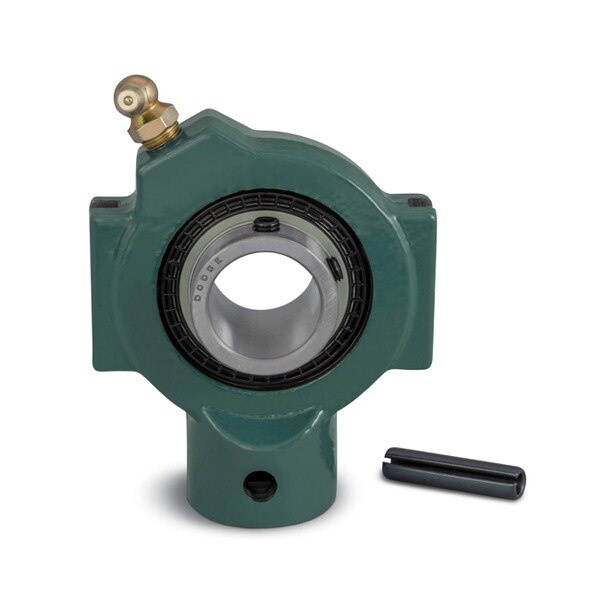

Dodge NSTU-SC-111
Details
Housing Type: Narrow-Slot Take-up
Housing Material: Cast Iron
Shaft Attachment: Setscrew
Shaft Diameter: 1.6875 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 209 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height:
Bolt to Bolt (Max):
Bolt to Bolt (Min):
Bore Length: 1.9400 in
Maximum Speed: 300 RPM
Static Load Capacity: 4906 lbf
Housing Material: Cast Iron
Shaft Attachment: Setscrew
Shaft Diameter: 1.6875 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 209 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height:
Bolt to Bolt (Max):
Bolt to Bolt (Min):
Bore Length: 1.9400 in
Maximum Speed: 300 RPM
Static Load Capacity: 4906 lbf
