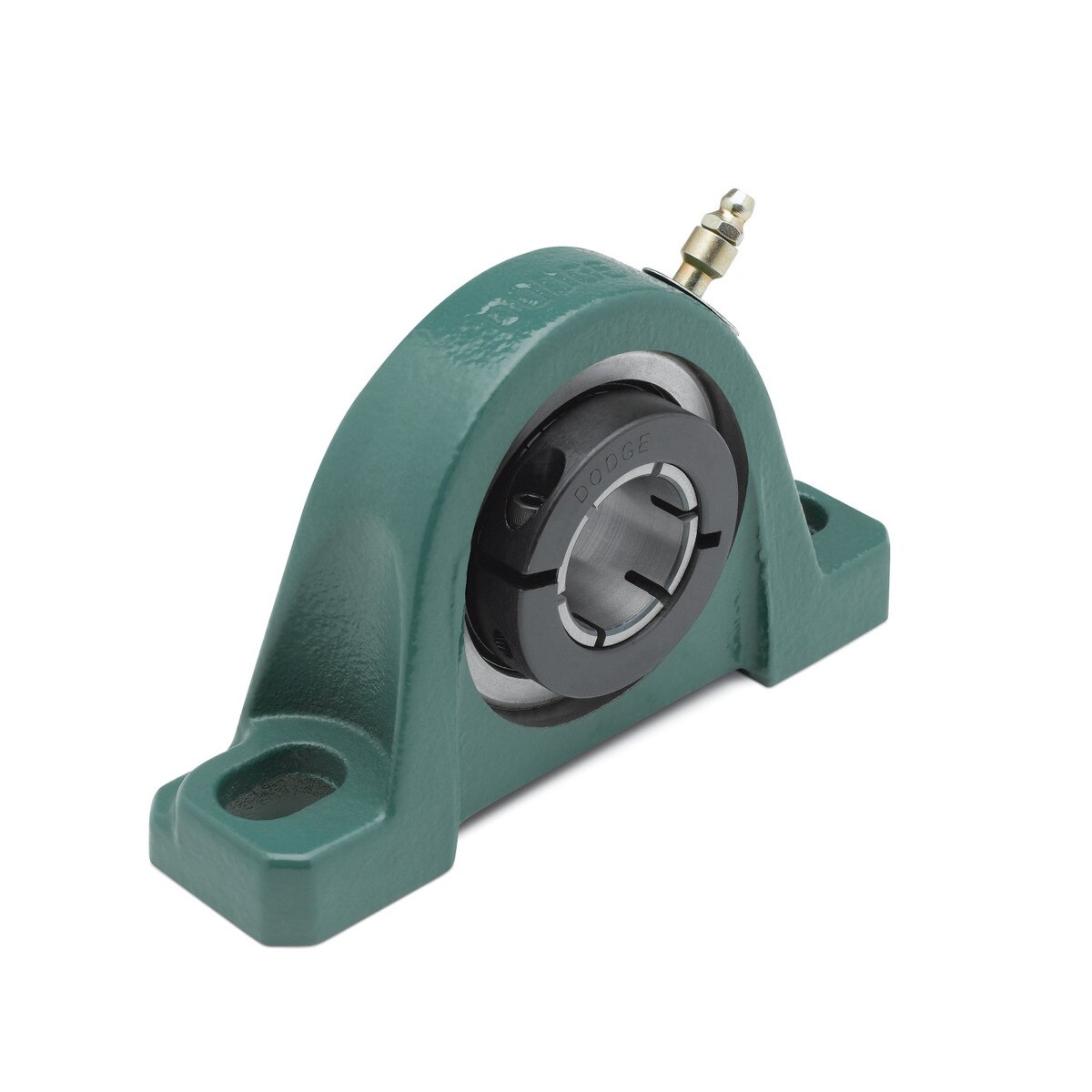

Dodge P2B-DL-115
Details
Housing Type: Two-Bolt Pillow Block
Housing Material: Cast Iron
Shaft Attachment: Clamp Collar
Shaft Diameter: 1.9375 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 210 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height: 1.2500 in
Bolt to Bolt (Max): 6.6800 in
Bolt to Bolt (Min): 6.0000 in
Bore Length: 2.0100 in
Maximum Speed: 4500 RPM
Static Load Capacity: 5213 lbf
Housing Material: Cast Iron
Shaft Attachment: Clamp Collar
Shaft Diameter: 1.9375 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 210 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height: 1.2500 in
Bolt to Bolt (Max): 6.6800 in
Bolt to Bolt (Min): 6.0000 in
Bore Length: 2.0100 in
Maximum Speed: 4500 RPM
Static Load Capacity: 5213 lbf
