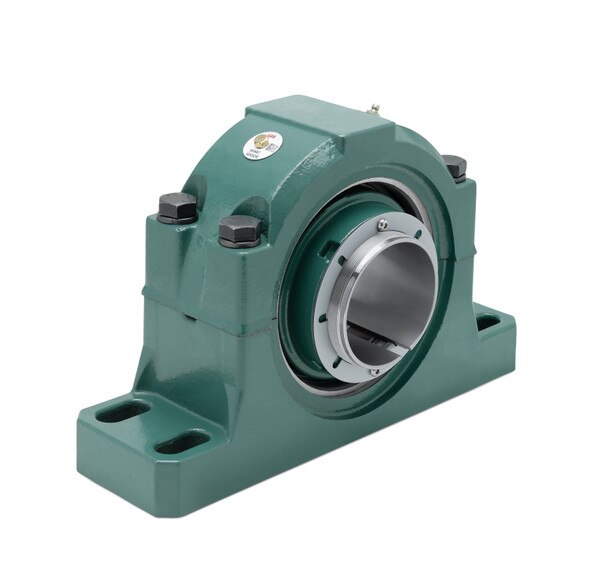

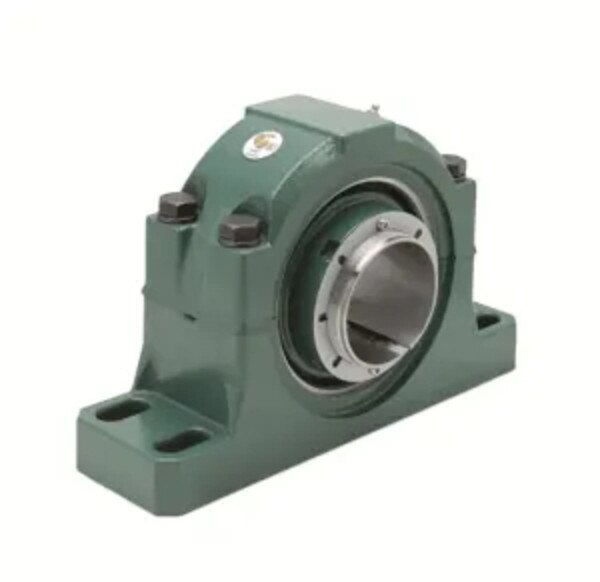

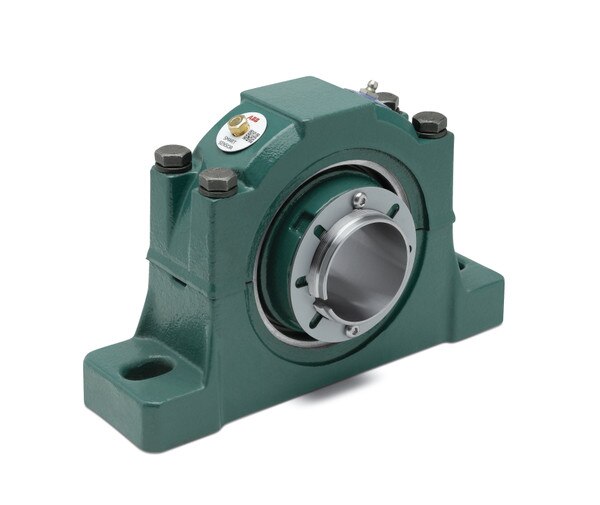

ISAF Features/Benefits – Imperial – IP, ISAF and ISN – ISAF

• Interchangeable with SAF style pillow blocks

• Patented adapter mounting system

• Easy installation - no feeler gauges needed

• Easy removal - no torches, sledge hammers or special tools needed

• DODGE TRIDENT triple lip seal provides superior sealing system

• Labyrinth seal available for high speed or high temperature applications.

• Up to ±1° misalignment capability

• Seal land on OD of inner ring maintains full contact pressure even when misaligned

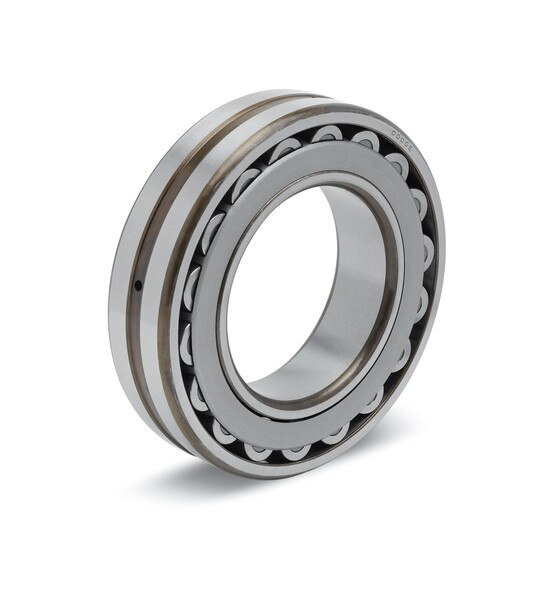

• High capacity double row spherical bearings

• 2 bolt pillow blocks in sizes 1-7/16” to 3-6/16”

• 4 bolt pillow blocks in sizes 2-7/16” to 7”

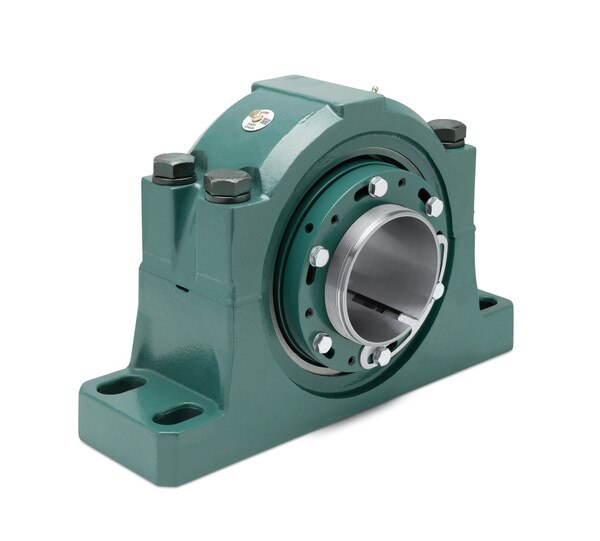

ISAF HYD

• Built in hydraulic mounting and dismounting - No feeler gauges for installation - No torches or sledge hammers for removal • Built in taconite style sealing • 4 bolt pillow blocks 5-7/16" through 15" • 22232K through 23176K double row spherical bearings
