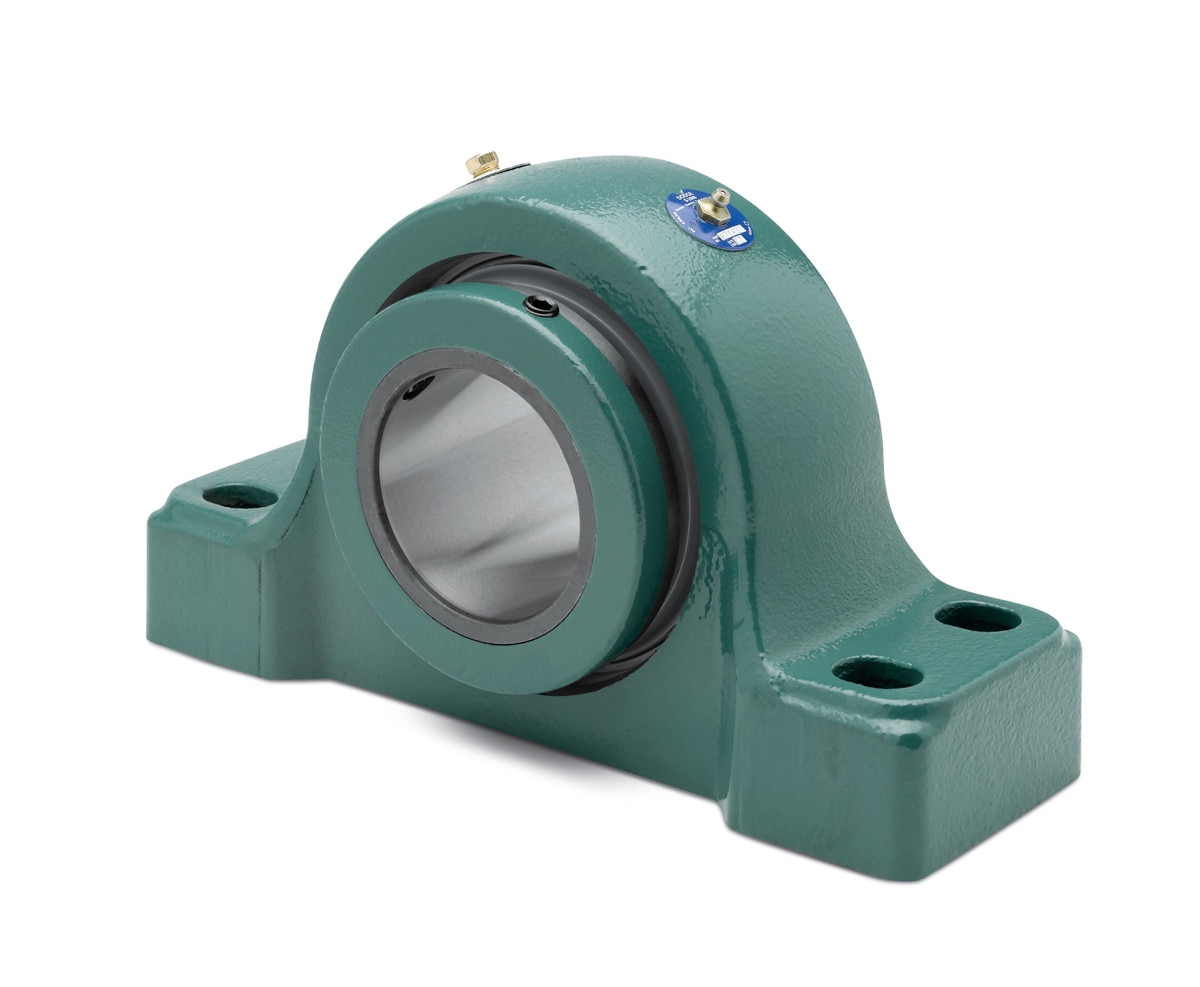

EP4B-S2-315L

Bearing Component: Mounted Bearing
Bearing Type: Spherical Roller
Expansion Capability: Non-Expansion (Fixed)
Housing Type: Four-Bolt Pillow Block
Seal Type: Labyrinth
Shaft Diameter: 3.9375 in

Housing Material: Cast Iron
Shaft Attachment: Setscrew
Base to Center Height: 4.2500 in
Bolt to Bolt Max: 12.7500 in
Maximum Speed: 1320 RPM
Static Load Capacity: 104000 lbf
