Elastomeric - D-Flex Features/benefits
- Interchangeable components makes installation quick and easy
- Interchangeable with other elastomeric sleeve couplings
- Slides into position for snug fit No lubrication assures trouble-free operation
- No metal-to-metal contact
- Provides clean, quiet, trouble-free performance
D-Flex flange styles

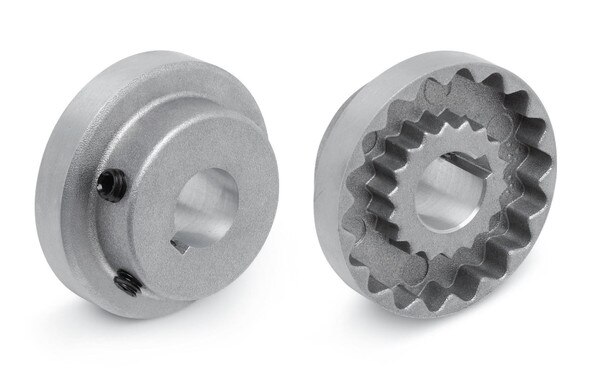

Low cost type J couplings offered in four sizes
• Features zinc die-cast flanges that are bored to size
• Accommodates applications through 10 Hp at 1750 RPM

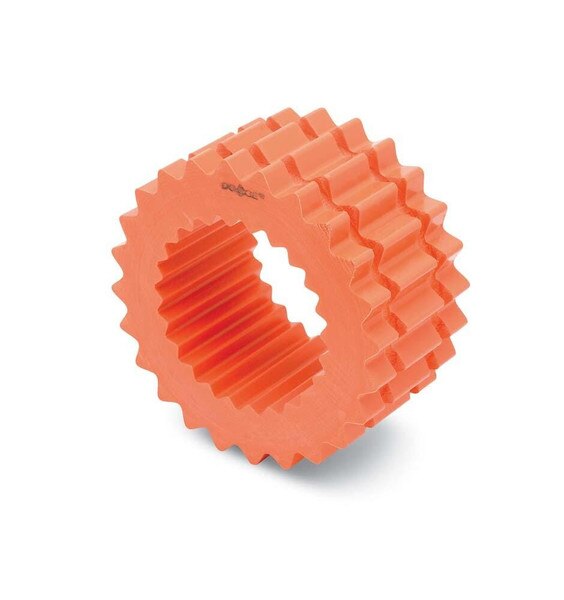

• Available with EPDM or Neoprene sleeves
• Shaft attachment with two setscrews at 65° for optimal holding power

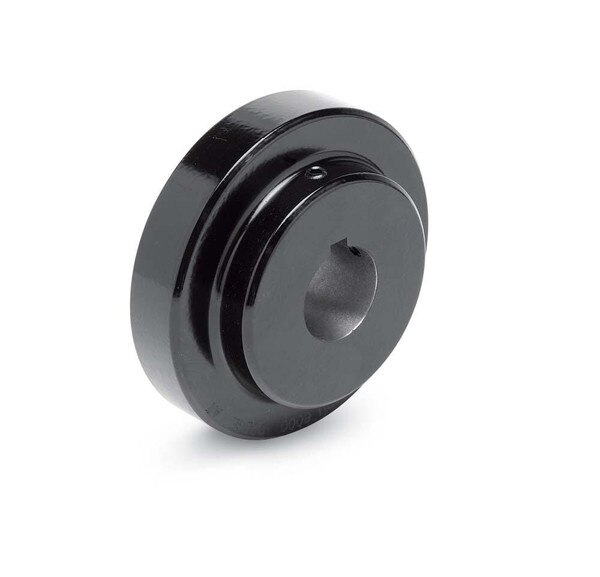

Type S couplings feature high-strength, cast iron flanges that are finished bored for AGMA clearance fit
• Ionized powder coated flanges for superior corrosion protection

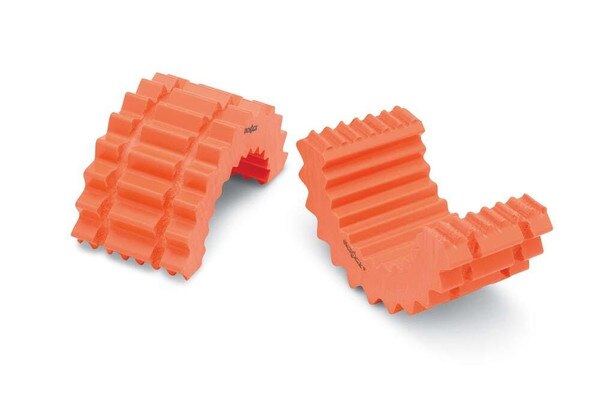

• Available with EPDM, Neoprene or Hytrel★ sleeves
• Shaft attachment with two setscrews at 65° for optimal holding power
Type B couplings offered with standard QD†bushing shaft attachment
• Constructed from high-strength cast iron
• Available with EPDM or Neoprene sleeves

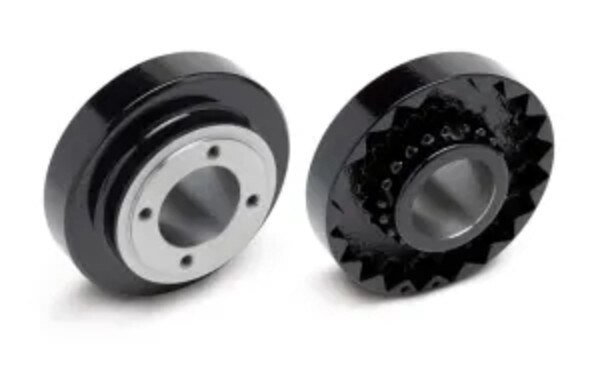

Type SC spacer couplings satisfy standard spacing requirements for pump applications
• Accommodates ANSI and ISO standard between shaft end dimensions, with custom spacer dimensions available on demand
• Available with EPDM, Neoprene or Hytrel sleeves

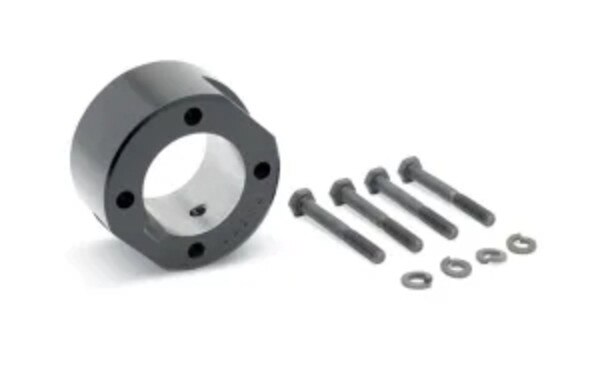

• Uses H & HS shaft hubs that are bored to size for slip fit or offered with plain bore for reboring
• Shaft attachment with two setscrews at 65° • Shaft hub flats are used for holding shafts stationary while loosening or tightening grade 8 bolts
