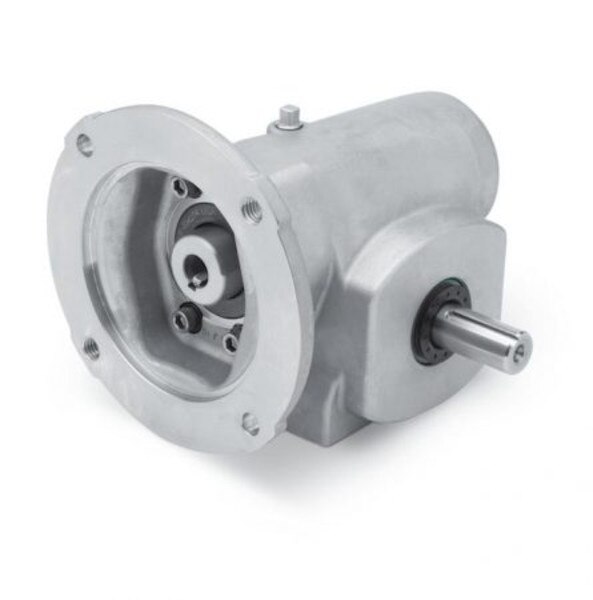

Food Safe Tigear-2 Stainless reducer

The Food Safe Tigear-2 reducer is the new standard in washdown gearing. A smooth, rounded design and laser marked nameplate reduce potential harboring or pooling locations.

Food Safe ready

• One year water ingress warranty

• IP69 rated for extended life

• Two-piece harsh duty sealing system keeps water and contaminates out and stands up to regular clean in place operations.

• All exposed surfaces are stainless steel to ensure corrosion resistance.

• Comes factory filled with food grade synthetic lube and is designed to be maintenance free.

• Center distances: 1.75", 2.00", 2.31", 2.62", and 3.00"

• Torque up to 2,400 lb.-in.

• Ratios from 5 to 60:1

Stainless steel accessories include:

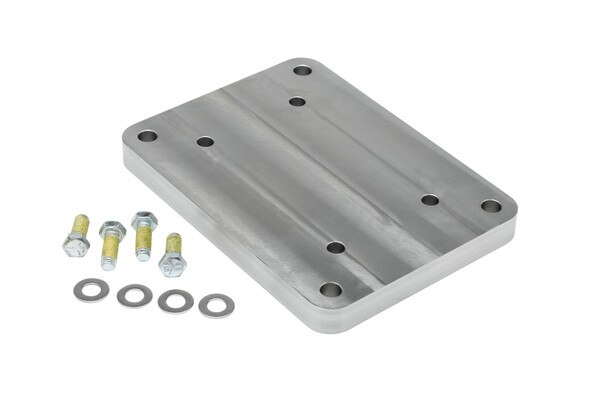

• Mounting base kit

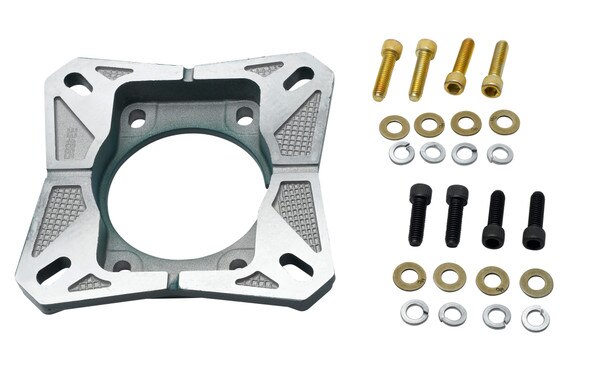

• Output flange kit

• Torque-Arm kit

• Bushing kits

• Metal detectable end covers
