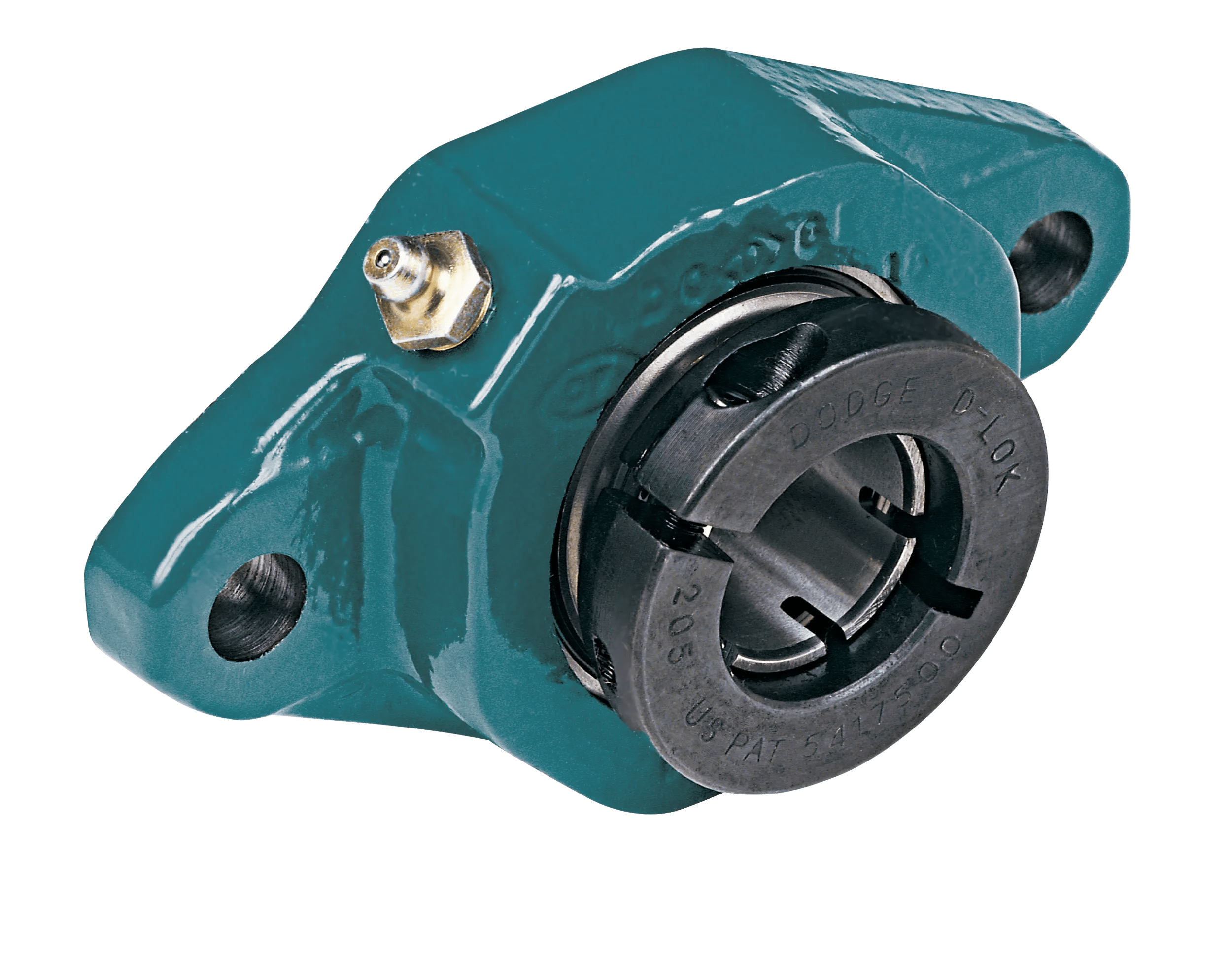

F2B-DL-30M-NL

System of Measurement: Metric
Housing Type: Two-Bolt Flange
Housing Material: Cast Iron
Shaft Attachment: Clamp Collar
Shaft Diameter: 30 mm
Expansion Capability: Non-Expansion (Fixed)

Ball Bearing Series: 206 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Bolt to Bolt (Max): 4.5900 in
Bolt to Bolt (Min): 4.5900 in
Bore Length: 1.5600 in
Maximum Speed: 5500 RPM
Static Load Capacity: 2538 lbf

Manufacturer: Dodge
Country of Origin: USA
