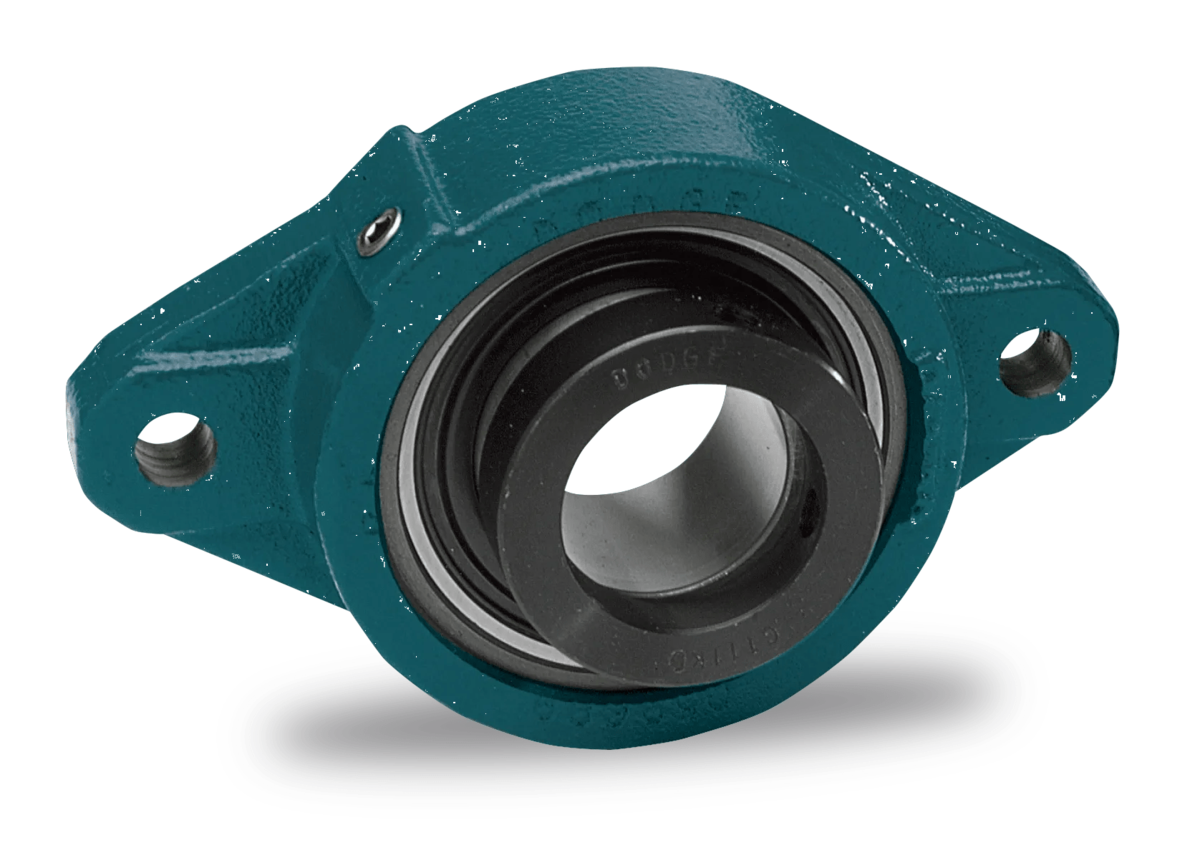

F2B-SXRAG-012

System of Measurement: Imperial
Housing Type: Two-Bolt Flange
Housing Material: Cast Iron
Shaft Attachment: Eccentric Collar
Shaft Diameter: 0.7500 in
Expansion Capability: Non-Expansion (Fixed)

Ball Bearing Series: 204 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Triple-Lip Contact

Bolt to Bolt (Max): 3.5300 in
Bolt to Bolt (Min): 3.5300 in
Bore Length: 1.5500 in
Maximum Speed: 5000 RPM
Static Load Capacity: 1484 lbf

Manufacturer: Dodge
Country of Origin: USA
