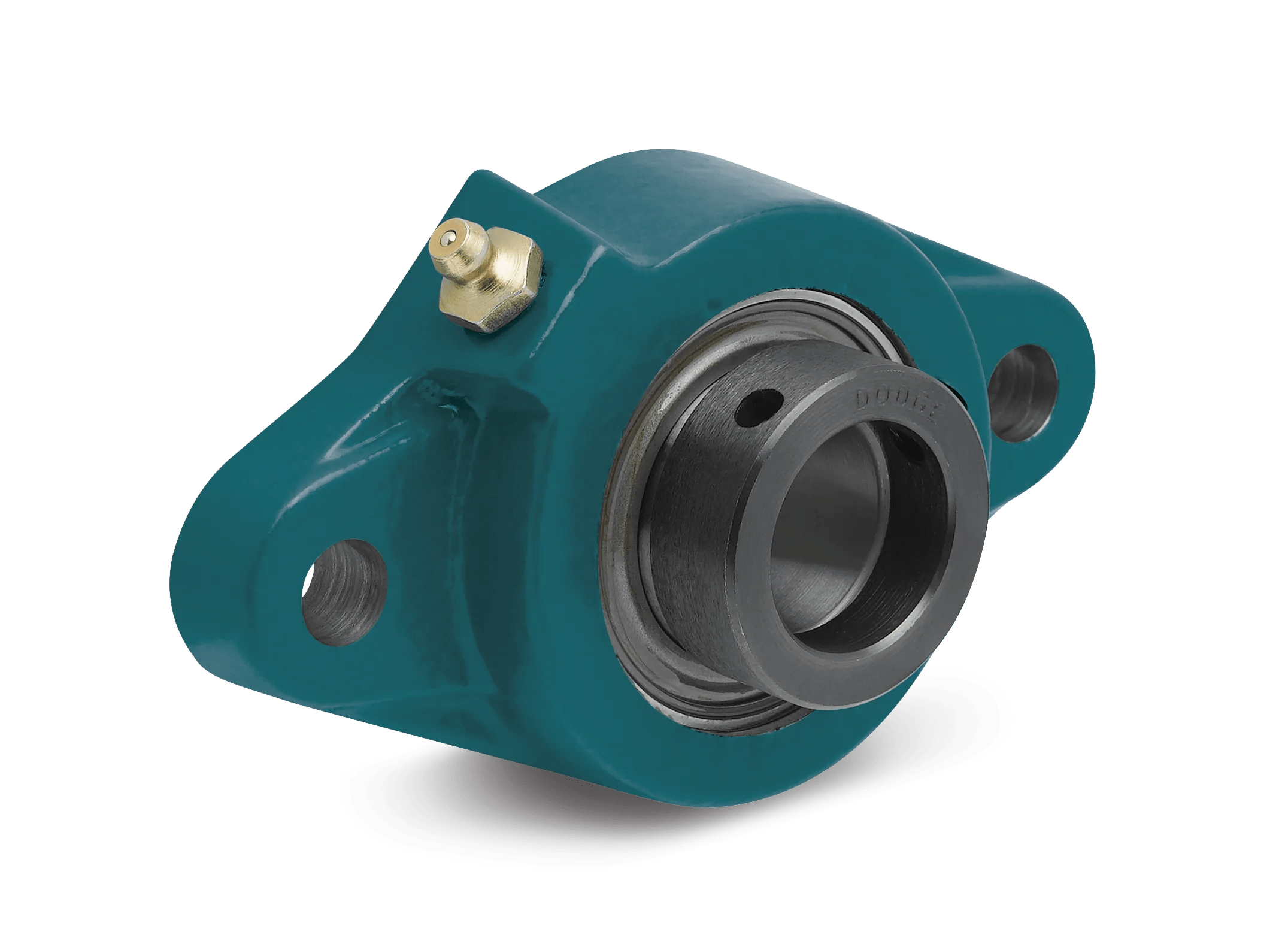

F2B-SXV-101

System of Measurement: Imperial
Housing Type: Two-Bolt Flange
Housing Material: Cast Iron
Shaft Attachment: Eccentric Collar
Shaft Diameter: 1.0625 in
Expansion Capability: Non-Expansion (Fixed)

Ball Bearing Series: 206 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact

Bolt to Bolt (Max): 4.5900 in
Bolt to Bolt (Min): 4.5900 in
Bore Length: 1.4100 in
Maximum Speed: 4500 RPM
Static Load Capacity: 2538 lbf

Manufacturer: Dodge
Country of Origin: USA
