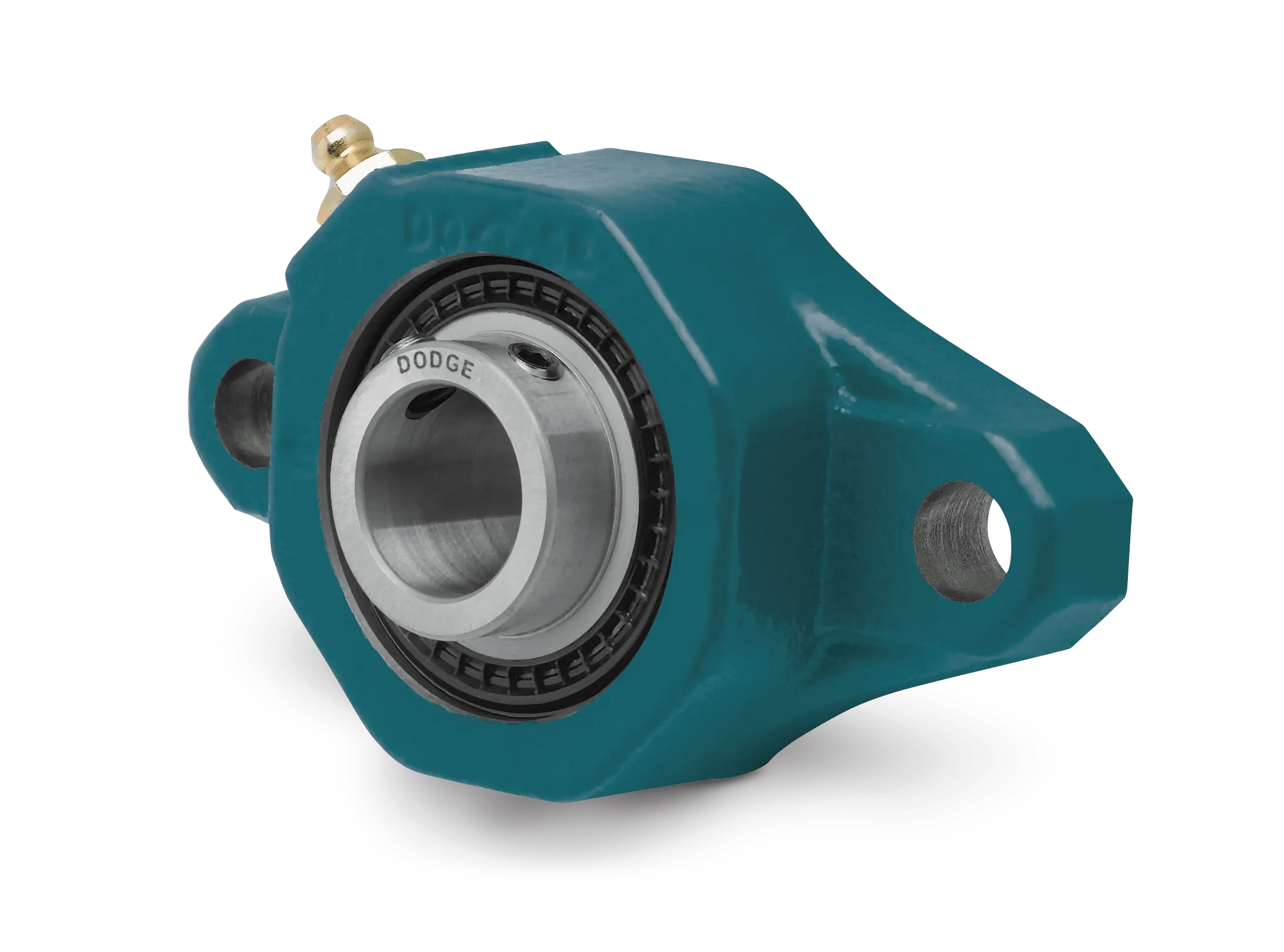

F2BZ-SC-115

System of Measurement: Imperial
Housing Type: Two-Bolt Flange with Pilot
Housing Material: Cast Iron
Shaft Attachment: Setscrew
Shaft Diameter: 1.9375 in
Expansion Capability: Non-Expansion (Fixed)

Ball Bearing Series: 210 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact

Bolt to Bolt (Max): 6.1900 in
Bolt to Bolt (Min): 6.1900 in
Bore Length: 1.9400 in
Maximum Speed: 3000 RPM
Static Load Capacity: 5213 lbf

Manufacturer: Dodge
Country of Origin: USA
