LFT-GT-014

System of Measurement: Imperial

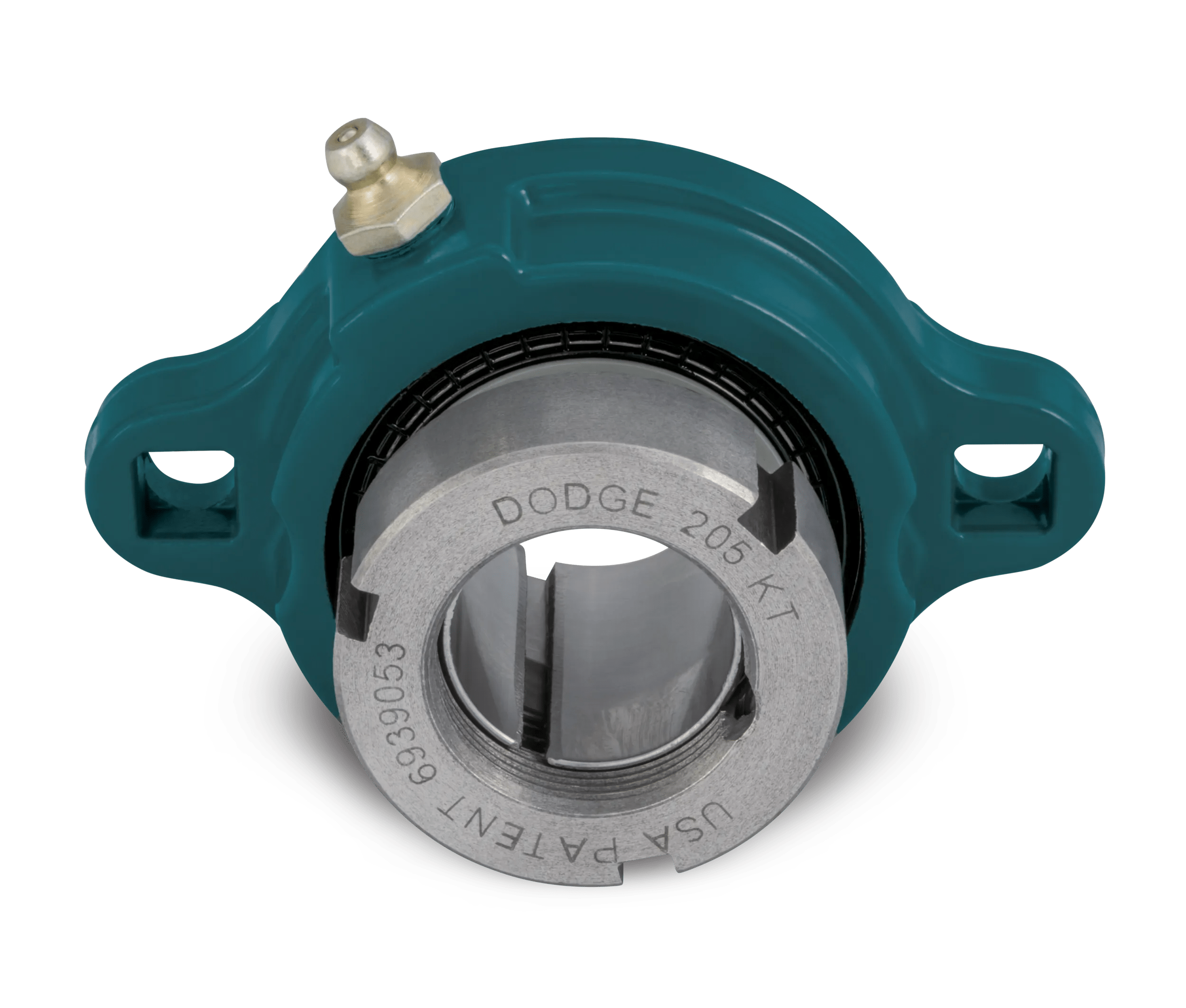

Housing Type: Two-Bolt Flange (Light Duty)
Housing Material: Cast Iron
Shaft Attachment: Push-Pull Adapter
Shaft Diameter: 0.8750 in
Expansion Capability: Non-Expansion (Fixed)

Ball Bearing Series: 205 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact

Bolt to Bolt (Max): 3.0000 in
Bolt to Bolt (Min): 3.0000 in
Bore Length: 1.4600 in
Maximum Speed: 9000 RPM
Static Load Capacity: 1769 lbf

Manufacturer: Dodge
Country of Origin: USA
