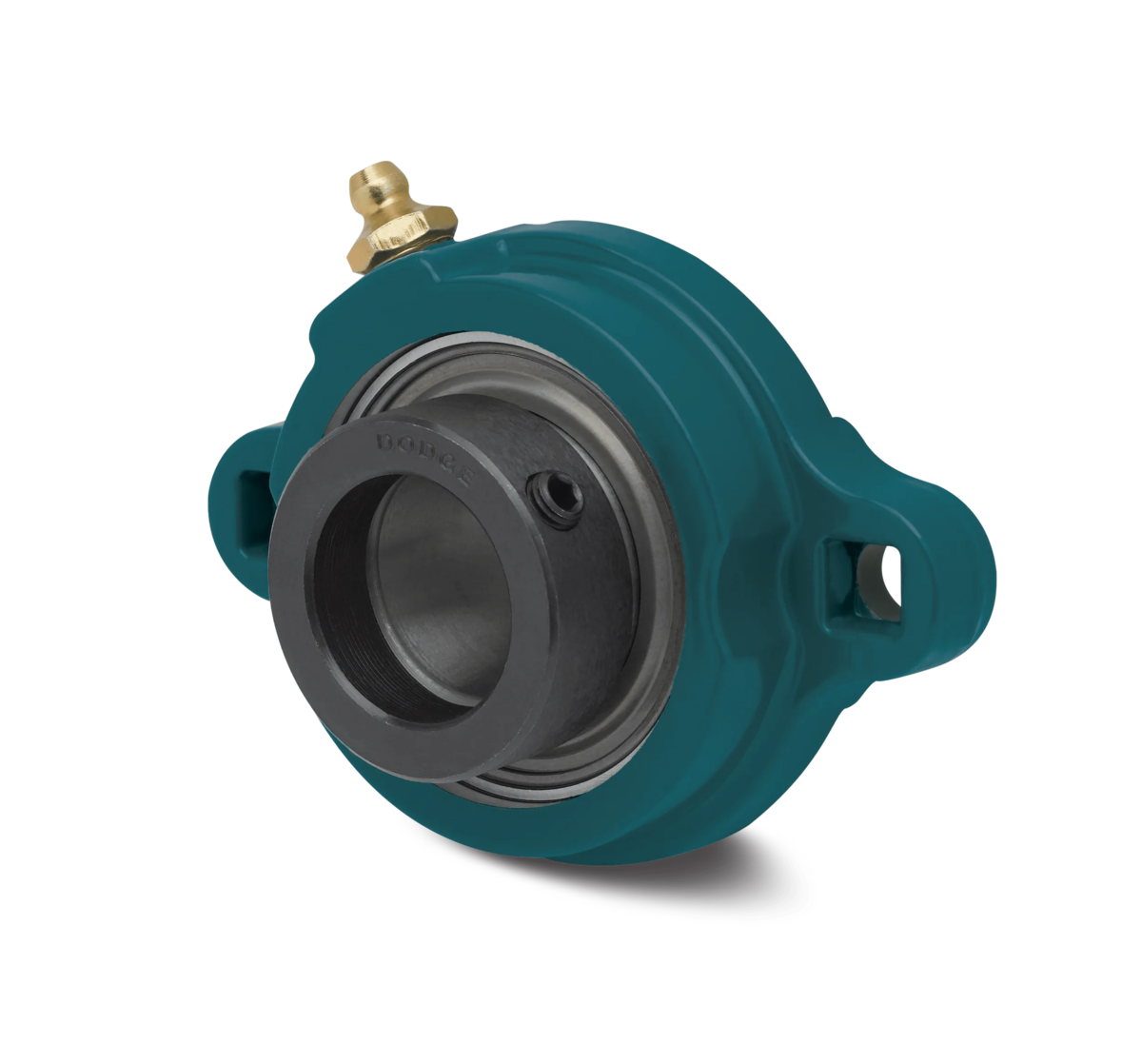

LFT-SXV-17M

System of Measurement: Metric
Housing Type: Two-Bolt Flange (Light Duty)
Housing Material: Alloy
Shaft Attachment: Eccentric Collar
Shaft Diameter: 17 mm
Expansion Capability: Non-Expansion (Fixed)

Ball Bearing Series: 203 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Bolt to Bolt (Max): 2.5000 in
Bolt to Bolt (Min): 2.5000 in
Bore Length: 1.1300 in
Maximum Speed: 5000 RPM
Static Load Capacity: 1079 lbf

Manufacturer: Dodge
Country of Origin: USA
