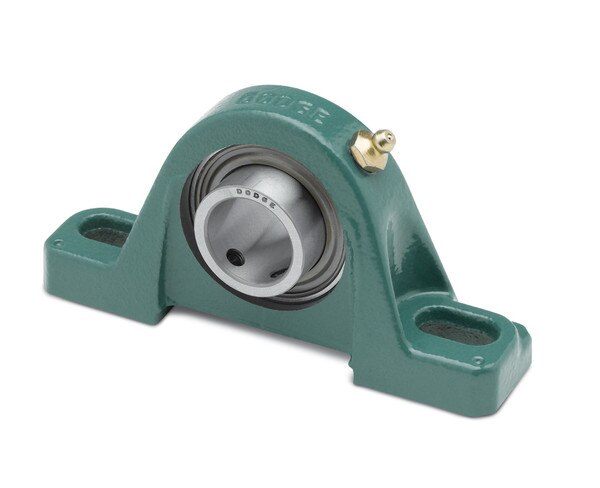

Dodge P2B-VSC-203
Details
Housing Type: Two-Bolt Pillow Block
Housing Material: Cast Iron
Shaft Attachment: Setscrew
Shaft Diameter: 2.1875 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 211 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height: 2.5000 in
Bolt to Bolt (Max): 7.4400 in
Bolt to Bolt (Min): 6.3800 in
Bore Length: 2.2200 in
Maximum Speed: 2500 RPM
Static Load Capacity: 6588 lbf
Housing Material: Cast Iron
Shaft Attachment: Setscrew
Shaft Diameter: 2.1875 in
Expansion Capability: Non-Expansion (Fixed)
Ball Bearing Series: 211 Series
Insert Material: Steel
Lubrication Type: Grease
Seal Type: Single-Lip Contact
Base to Center Height: 2.5000 in
Bolt to Bolt (Max): 7.4400 in
Bolt to Bolt (Min): 6.3800 in
Bore Length: 2.2200 in
Maximum Speed: 2500 RPM
Static Load Capacity: 6588 lbf
