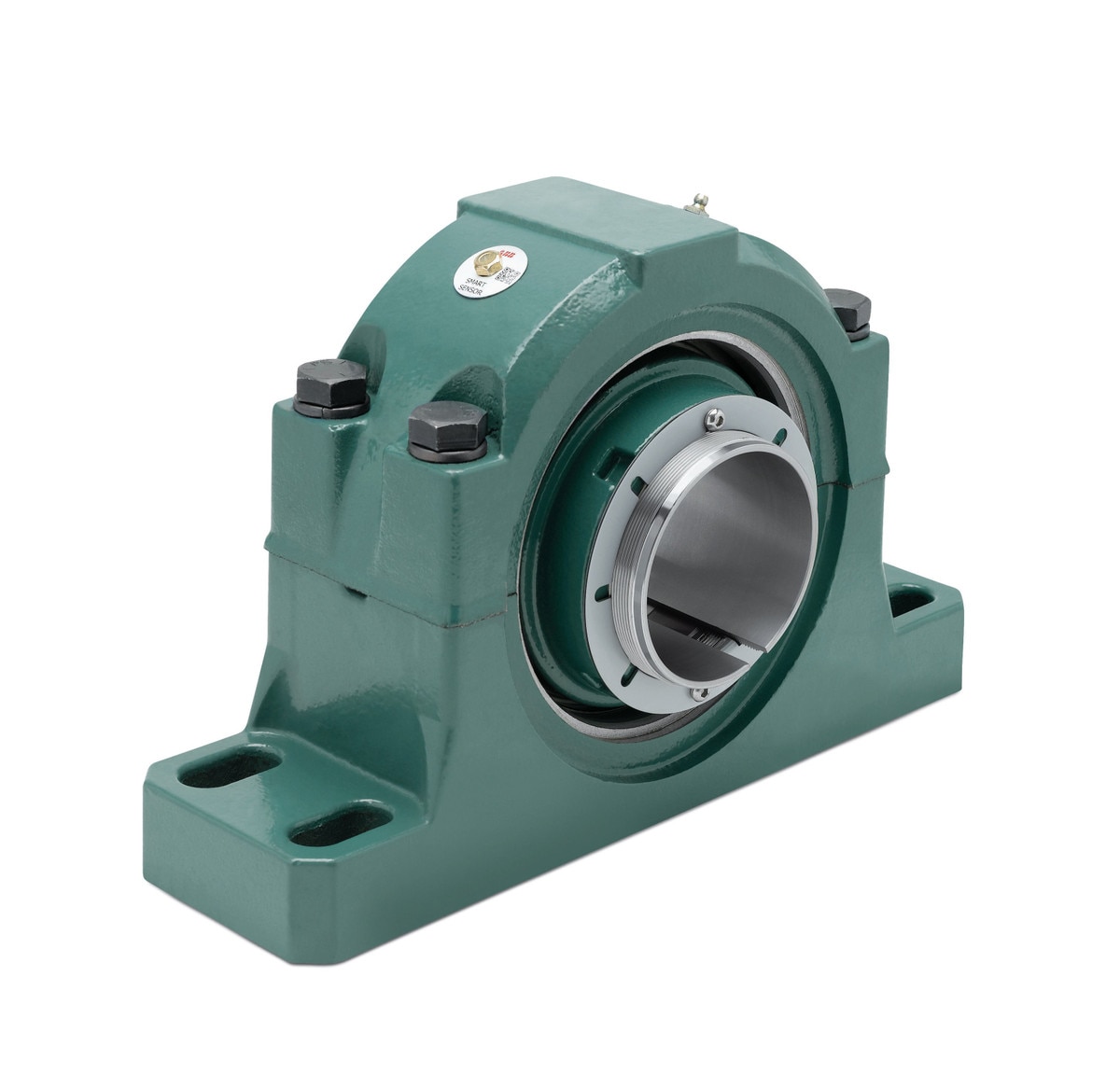

P4B517-ISAF-215LE

Housing Type: Four-Bolt Pillow Block
Housing Material: Cast Iron
Shaft Attachment: Push-Pull Adapter
Shaft Diameter: 2.9375 in
Expansion Capability: Expansion (Float)

Insert Material: Steel
Lubrication: Grease
Seal Type: Labyrinth
Base to Center Height: 3.7500 in
Bolt to Bolt (Max): 11.0000 in
Bolt to Bolt (Min): 9.8800 in
Bore Length: 3.5000 in
Maximum Speed: 3400 RPM
Static Load Capacity: 53000 lbf

Manufacturer: Dodge
Country of Origin: USA
Weight: 39.4 lb
