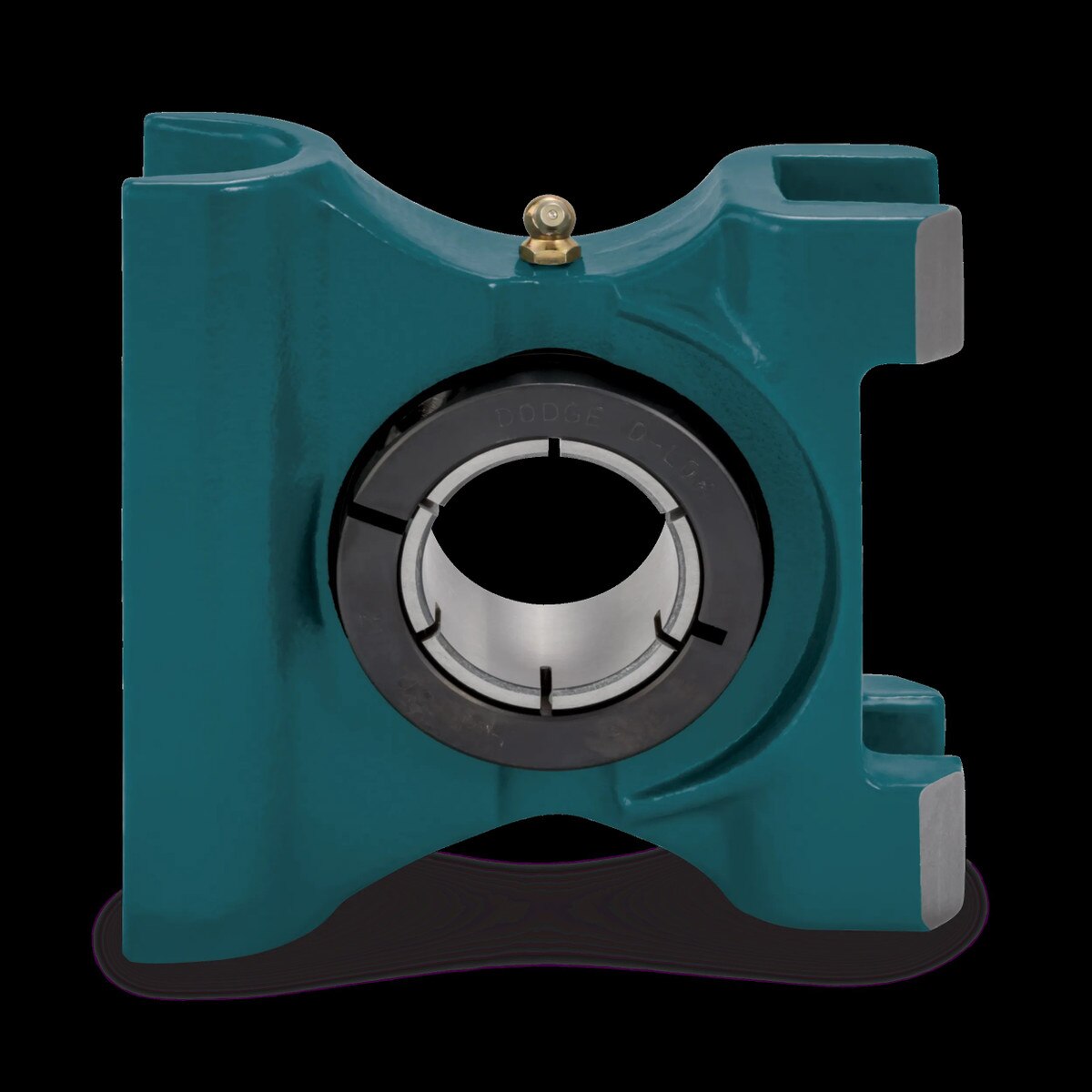

Dodge 049415 TP-DL-215

Housing Type: Top-Angle Take-up
Housing Material: Cast Iron
Shaft Attachment: Clamp Collar
Shaft Diameter: 2.9380 in
Expansion Capability: Non-Expansion (Fixed)

Ball Bearing Series: 215 Series
Insert Material: Steel
Lubrication: Grease
Seal Type: Single-Lip Contact
Take-Up Frame Size: TP-50
Bore Length: 2.6200 in
Maximum Speed: 3000 RPM
Static Load Capacity: 11108 lbf

Manufacturer: Dodge
Country of Origin: USA
Weight: 19.46 lb
